Photographic Accessories:

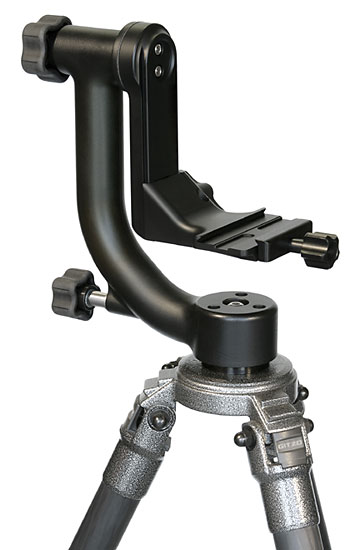

Wimberley Head - Version II

WH-200 Wimberley Head Version II ($595.00)

The Wimberley Head is a specialized tripod head for telephoto lenses. Its gimbal-type design allows you to rotate your lens around its center of gravity and thus easily manipulate very large lenses.  Since its introduction in 1991, the Wimberley Head has become the industry standard for serious nature photographers.

Design Improvements for Version II

The Wimberley Head Version II offers the same stiffness, capacity, and fluid movement of the old version in a more compact and lightweight package (it is one pound lighter and about two inches shorter). The head’s redesigned panning base has zero play, and the pan locking knob has been moved to the side of the head, thus allowing the user to easily operate both knobs with the same hand. New lobed “soft-touch” knobs provide a more comfortable grip and perform better when using gloves.

In addition to the above improvements, Wimberley has examined all aspects of the head, tightening tolerances, improving friction materials and so forth. Whimberley's goal has been to make this head functionally and aesthetically better in every way than the old version and competing products.

Specifications
Wimberley Head Version II
(w/ built-in quick-release)

Old Wimberley Head
w/ Quick-Release

Retail Price $595.00 $565.00
Weight (lbs) 3.15 lb 4.15 lb
Max. Dimensions

Height: 9.28"
Width: 3.50"
Depth: 9.87"

Height: 11.08 "
Width: 4.28 "
Depth: 10.09"
Module M-9 or (M-5 + FA-9) M-5
Quick-Release Type Arca-Swiss (Built-in) Arca-Swiss (Bolted-on)

The Sidekick

At 1.3 pounds and small enough to be easily packed, the Sidekick converts your ball head into a gimbal head in seconds.

SK-100 The Sidekick ($250.00)

Simply slide the Sidekick into the quick-release of your ball head. The Sidekick's elevated tilt mechanism and side-mounted quick release allow the lens to rotate around its center of gravity. This provides the same action and ease of use found in the original Wimberley Head at greatly reduced size, weight, and cost. Remove the Sidekick and your ball head is ready to use with smaller lenses.

The Plamp

The Plamp is an easily positionable arm used to hold macro subjects and other useful objects.

PP-100 The Plamp ($36.95)

One end of the Plamp clamps to your tripod while the other grasps the object. Use the Plamp to stabilize windblown subjects, adjust the position or angle of your subject, or move obstructing foliage. You can also use the Plamp to hold reflectors and lens shades. One day in the field with a Plamp and you will begin to realize its full potential.

Flash Brackets - Telephoto Brackets

F-1 Telephoto Bracket ($196.00)

This bracket consists of modules M1, M2, & M3. The most versatile of Whimberley's telephoto brackets, it attaches to the quick-release plate of any lens. It can be used on a ball head or the Wimberley Head, or can be reconfigured to work on the Sidekick. Add other modules to this bracket to add macro capability (see below) or to form a quick-flip wedding bracket.





F-3 Telephoto/Macro Kit ($299.00)

This kit consists of the F-1 Telephoto Bracket and M-4 Macro Arm. This versatile set of components allows you to form either the F-1 Telephoto Bracket or the F-2 Macro Bracket (page 19). Note: You cannot form both brackets at the same time.

You can also also attach the M-4 Macro Arm to the top of the telephoto bracket for added reach and positionability.

F-4 Old Style Wimberley Head Bracket ($186.00)

This bracket consists of modules M3 & M5. It attaches directly to the swinging arm of the Old-Style Wimberley Head (not Version II). Since it is attached to the head and not your lens, it remains in place when you switch lenses. The bracket folds flat for easy storage.





F-6 Sidekick Bracket ($152.00)

This bracket consists of modules M1 & M3. It positions the flash above the lens when using side-mounted gimbal heads such as the Sidekick.

Note: If you want a bracket that will work on the Sidekick and on your ball head, the F-1 Telephoto Bracket can be configured for either task

F-9 Wimberley Head Version II Bracket ($196.00)

This bracket consists of modules M3 & M9. It attaches directly to the Arca-Swiss style dovetail on the swinging arm of the Wimberley Head Version II. Since it is attached to the head and not your lens, it remains in place when you switch lenses. The bracket folds flat for easy storage.

Flash Brackets - Individual Modules

Module 1---M-1 Quick-Release Arm ($66.00)

This module attaches to the Arca-Swiss quick-release plate on your lens or camera body.

Module 2---M-2 Upright ($44.00)

This module forms the vertical upright for the F-1 Telephoto Bracket

Module 3---M-3Tilt Arm ($86.00)

This module serves as the tiltable attachment point for your flash for telephoto brackets

Module 4---M-4 Macro Arm ($103.00)

This module is an extremely positionable arm used in our macro brackets and for advanced telephoto work

Module 5---M-5 Old-Style Wimberley Head Module ($100.00)

This module serves as the vertical upright and quick-release attachment for the F-4 Old-Style Wimberley Head Bracket. It folds for easy storage and connects directly to the Old-Style Wimberley Head (WH-100 or WH-101).

Module 6---M-6 Extension Post ($43.00)

This module can be added to any of our telephoto brackets to increase the height of your flash.

Module 7---M-7 Flash Flipper ($89.00)

Add this module to the F-1 Telephoto Bracket to easily flip your flash for vertical and horizontal shots.

Module 8---M-8 Perpendicular Plate ($85.00)

This module allows you to attach the F-1 Telephoto Bracket or multiple F-2 Macro Brackets to your camera body.

It is also useful as a small macro slider for making small forward-backward adjustments for macro photography.

Module 9---M-9 Wimberley Head Version II Module ($110.00)

This module serves as the vertical upright and quick-release attachment for the F-9 Wimberley Head Version II Bracket. It folds for easy storage and connects directly to the Wimberley Head Version II.

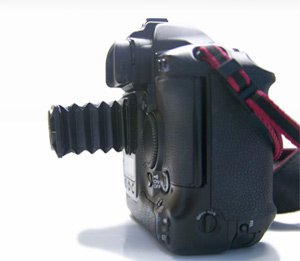

Screen Shades for the LCD panals on digital Cameras

At last! You can see the LCD panel on your digital camera even on sunny and glary days! Also protects the UV effects of the sun on the screen...$25. each. (add $1.00 for shipping and handling)

Magnifier: (optional)

Has the ability to add a 3X magnifier, which quickly snaps on the back of the Screen Shade for easier editing of each image... $25. each. (Add $1.00 for postage)

Sizes:

Model #250: Canon 5-D, 30D, MarkII 1DN, Nikon D2x, D200, D2h

The Better Beamer Flash Extender

For telephoto lenses from 300mm on up only

Specifications & Functions

  • Reduces battery drain
  • Weighs 2 1/2 ounces
  • Easy to use
  • Fits in your shirt pocket
  • Flash reaches greater distances (about 500 ft.) w/smaller aperture
  • Fresnel lens stays in place with sturdy side-arms





4 Sizes:

  1. FX-1: Canon 430 EZ, Nikon SB 24, SB28, & flashes measuring 1 1/2 thickness to 1 9/16th Minolta 5200, and 5400s, Pentax 5000AF
  2. FX-1B: Nikon SB80dx, SB 28dx, SB800, Canon 420EX
  3. FX-2: Canon 540EZ, 550EX, Nikon SB25 & SB26
  4. FX-3: Manufactured expressly for Canon 580EX

$45.00 each

Replacement Fresnel lenses and/or Velcro bands are $13.50 each item, plus $1.00 shipping.
